Sea Bulk Container Liners

Bulk-Pack offers Sea Bulk Container Liners for Customers Exporting from their site to the rest of the world

What is a Sea Bulk Container Liner?

Sea Bulk Container Liners are the most efficient and economical means of packaging for dry, free flowing products from one country to another.  Sea Bulk Container Liners are used inside 20', 30', 40', 40' High Cube Intermodal Containers, and 53' containers.

Essentially, we call this our "Silo to Silo Solution." One to two people can install and fill a container liner from rail car or silo within 1 hour, ship, and 1 person to discharge the product into your customer's warehouse silos.

This eliminates the needs for packing machines, man power to fill and move product to warehouse, packing into a container, unloading the container into storage warehouse, to final shipment to customer.

Sea Bulk Container Liners come in several forms whether a woven polyolefin bag or a PE Film to keep it safer from contamination. They are customizable for loading and unloading operations.

Bulk-Pack's lead manager has 20+ experience in sea bulk container liner packing and shipping so whatever your need is, we can help!

"Silo to Silo Shipping Solutions"

Sea Bulk Container Liners are meant for customers that can ship up to 55,000# of product into a intermodal container for export from their site to their customer's or consignee warehouse in another country.

Installation and Loading

1- One to two people sweep and inspect the intermodal container for dust, sharp edges in the container and nails.  They secure the front (opposite doorway end) with a securement bar or belt.  After this, they tie the liners to the lashes in the container until they get into the doorway end. Last, they secure the bulk head to the container per the design configuration. This entire operation takes less than 15 minutes with experienced employees.



2 - The operator fill the sea bulk container liner with air until it is fully inflated.  At this point whether shipping from rail car or silo (or even an auger), the operators will fill the container liner with product until it reaches its goal weight.  The operators close off the Loading Sleeves (or closes the zipper/duffel), shuts the door, and it is ready for shipment.  This can take from 10 minutes to 1.5 Hours depending on the loading equipment.

Discharging

3 - The operator will open 1 door of the intermodal container, untie the discharge chutes (or cut the bottom) and feeds into the pneumatic equipment to load the silo.  This takes less than 5 minutes.



4- The operator will use a tilting chassis or platform and "tilt" the container in 10 degree increments up to 45 degrees. The worker can never get in front of the doors once tilting occurs.  As product slows in flow, the operator will increase the angle of the container.  This can take anywhere between 30-60 minutes depending on the equipment.



5- When product stops flowing, the operator lowers the container and opens the other door.  The operator manipulate the product to the discharge funnel.  This takes less than 5 minutes.



6- Operator unhooks the container and disposes the container liner.

Total Labor Time from Installation - Loading - Discharging:

*15 Minutes x 2 Operators for Installation = 30 Minutes

*90 Minutes x 1 Operator for Loading = 90 Minutes

*5 Minutes x 1 Operator to Set Discharge = 5 Minutes

*45 Minutes x 1 Operator to Discharge = 45 Minutes

*5 Minutes x 1 Operator to Finish = 5 Minutes

*175 Minutes Total Time from Installation to Discharge

*Denotes average time, each product and equipment is different.

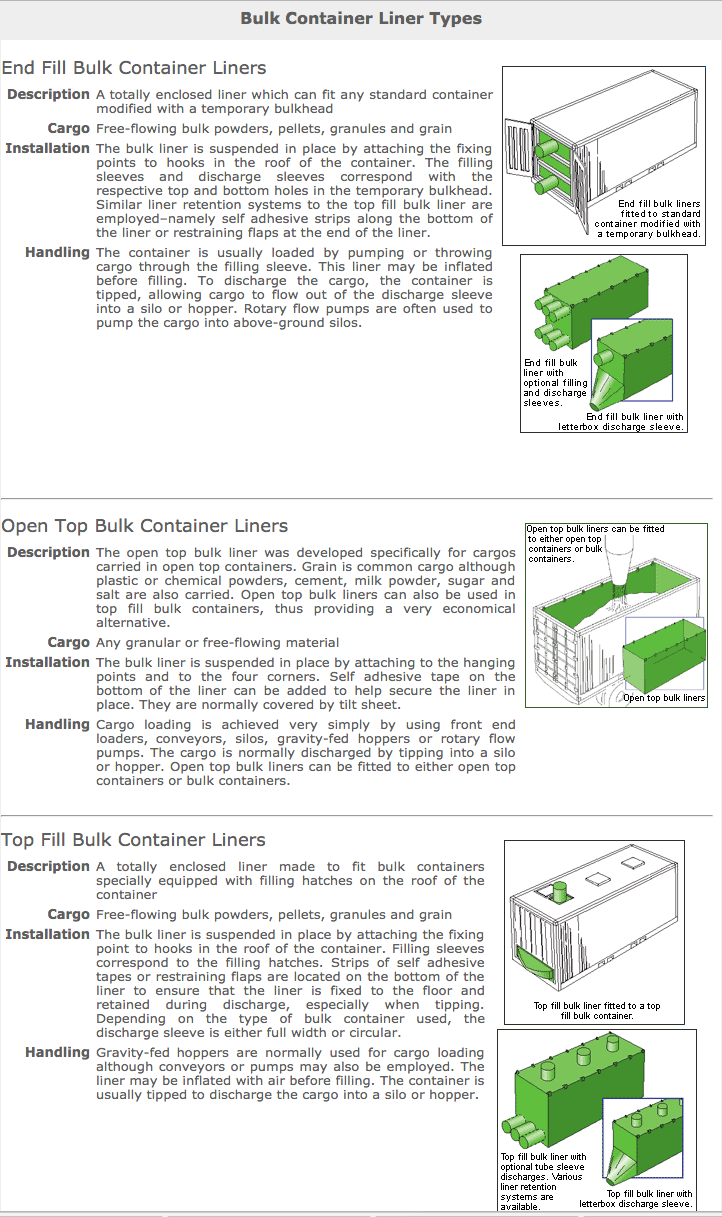

Types of Sea Bulk Container Liners
Styles of Sea Bulk Container Liners
Commodity Woven Container Liners

Our Standard and most used sea bulk container liner is our polywoven liner with 5 steel bar bracing system.

Used heavily in the chemical and petrochemical industries, this is our most popular Style Container Liner.  This container liner can have the following features:

  • Spout/Vent Loading System

  • Duffel/Zipper Wide Mouth Opening Loading System

  • Discharge Chute(s)

  • Air Bag Safe Unload Accessory

  • Uncoated Fabric for breathability

  • Coated Fabric for Moisture Protection

  • Sift Proof Seams

PE Film Sea Bulk Container Liners

Our Premium Container Liner has a strong barrier against oxygen and moisture contamination.  There is no threat of thread contamination as the bag is heat sealed and has an added bulk head on the outside for easy installation.

This container liner is best for more sensitive products or powders that need to prevent any contamination.  These container liners are also customizable

  • Spout/Vent Loading System

  • Duffel/Zipper Wide Mouth Opening Loading System

  • Discharge Chute(s)

  • Air Bag Safe Unload Accessory

  • Fluidizing bed for hard to flow products

Bar-less Woven Container Liners

Our Most Economical Option for customers that really want to reduce their packaging and handling cost is our Bar-Less Woven Container Liner

Used heavily in the agriculture industry, this is our most cost effective package we offer throughout all of Bulk-Pack.  It can be customized to have:

  • Spout/Vent Loading System

  • Duffel/Zipper Wide Mouth Opening Loading System

  • Discharge Chute(s)

  • Air Bag Safe Unload Accessory

  • Uncoated Fabric for breathability

  • Coated Fabric for Moisture Protection

  • Sift Proof Seams

Bar-less Baffle Woven Container Liners

Our Bar-Less Baffle Woven Container Liner is one of the most impressive products we sell.  It allows customers to have a bulkhead at doorway end once the product flows into baffles.

Used heavily in the agriculture and feed industries, this is a very versatile liner.  This container liner can have the following features:

  • Spout/Vent Loading System

  • Duffel/Zipper Wide Mouth Opening Loading System

  • Discharge Chute(s)

  • Air Bag Safe Unload Accessory

  • Uncoated Fabric for breathability

  • Coated Fabric for Moisture Protection

  • Sift Proof Seams

Wide Access Container Liners

Wide Access Liners protect your palletized product or dry cargo.  Simply install the liner, load the cargo, and tie off the doorway end/

 This container liner can have the following features:

  • PE Film​

  • PE Film with Felt Floor (Good For Hide Liner Shipments)

  • Coated Woven Fabric

  • Aluminum Coated Fabric for temperature regulation (great for wine shipments)r
